Good price NJ205 NJ205ET2X 205ET2X high Quality LEVELTaper Roller 525215 Bearing Made in CHIINA MOQ 1

Brand Name : ZH

Model Number : NJ205ET2X

Place of Origin : China

MOQ : 1 piece

Price : discuss personally

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30000 Set/Sets per Month

Packaging Details : Neutral packing

Delivery Time : 2-5 days

Certification : IS09001

Product name : Needle roller bearing

Model : NJ205

Quality : Good

MOQ : 1

Packaging : Your requirement

Material : CHROME STEEL

Supply : 30000 Set/Sets per Month

Size : 52*52*15

Contact Now

NJ205 NJ205ET2X 205ET2X P0 P5 P6 P4 P3 P2 P1 Quality LEVEL CHROME STEEL Taper Roller Bearing

Product introdution
NJ205ET2X Cylindrical Roller Bearing is a type of linear bearing that uses one or more matched rows of cylindrical rollers to support combined loads, while allowing for rotational and axial movement. This bearing features a central shaft, inner ring with an integral flange, two integral flanges, and an outer ring that's fully removable. It can accommodate heavy radial loads at high speeds, has been pre-lubricated with light oil, ensuring it's ready for use upon arrival.

Good price NJ205 NJ205ET2X 205ET2X high Quality LEVELTaper Roller 52*52*15 Bearing Made in CHIINA MOQ 1

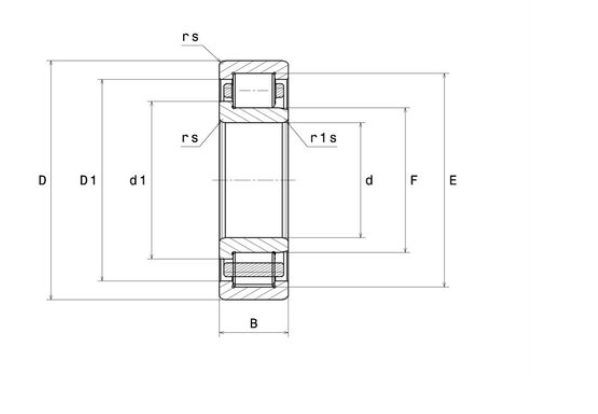

PRODUCT DEFINITION
Brand	ZH
d - Internal diameter	25 mm
D - External diameter	52 mm
B - Bearing/Inner ring width	15 mm
E - Upper roller diameter	46,5 mm
F - Under roller diameter	31,5 mm
d1 - IR flange outer diameter	34,5 mm
rs - Min fillet radius	1 mm
r1s - Min fillet radius	0,6 mm
Radial clearance class	CN
Mass	0,135 kg

PRODUCT PERFORMANCE
C - Dynamic load	29,3 kN
C0 - Static load	27,7 kN
Cu - Fatigue limit load	3,4 kN
Nlim - Oil lubrication limit speed	15000 tr/min
Nlim - Grease lubrication limit speed	13000 tr/min
Tmin - Min operating temperature	-20 °C
Tmax - Max operating temperature	120 °C

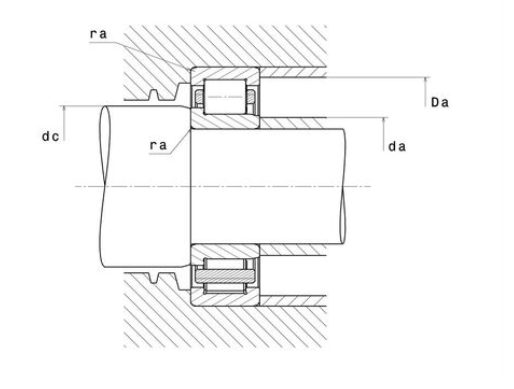

ABUTMENT
da min - Min shoulder diameter IR	30 mm
da max - Small face shoulder max diameter	31 mm
dc min - Min inner ring GO diameter	37 mm
Da max - Max shoulder diameter OR	47 mm
ra max - Max fillet radius	1 mm
