Brand Name : ZH
Model Number : 30305JR
Place of Origin : China
MOQ : 1 Piece
Price : 1USD/pcs
Payment Terms : L/C, T/T, Western Union
Supply Ability : 100 pieces/week
Packaging Details : neutral packing
Delivery Time : 2-5 days
Certification : IS09001

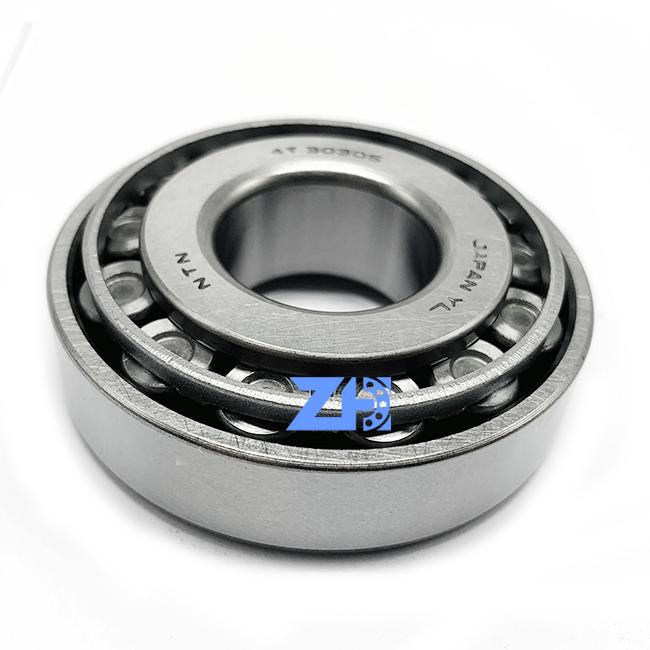

Product name : CHROME STEELT APPER ROLLER BEARING
Part : 30205
Weight : 0.26Kg
size : 25*62*17 mm
Material : CHROME STEEL
MOQ : 1
Supply : 30000 Set/Sets per Month
Quality : P0、P2、P4、p5、p6
P0 P6 P5 P4 P3 QUALITY LEVER 30305 30305B 30305P6X 30305X2B 30305JR 30305DJR CHROME STEEL TAPPER ROLL
Product introduction
Single row tapered roller bearings can withstand the axial load in one direction, and can limit the axial displacement of the shaft relative to the bearing seat in one direction, tapered roller bearings are widely used in automobile, rolling mill, mining, metallurgy, plastic machinery and other industries
The bearing is commonly used
The bearing is commonly used in engineering machinery accessories, fermentation extraction equipment, powder equipment, garbage disposal, tensile testing machine, workbench, hand wheel, gravure printing press, energy-saving melting furnace, screen printing machine, water cooled refrigerator, laboratory mixing equipment, food and beverage processing equipment, rotor pump, hobbing welding machine, cutting machine, electronic product manufacturing equipment, recycling crusher, pipe heating machine
Detailed data only to give you quality protection
Main dimensions | |||
SD | 25 | mm | the inside diameter of |
---|---|---|---|
D. | 62 | mm | outer diameter |
T | 18.25 | mm | - |
B | 17.0 | mm | width |
C | 15.0 | mm | width |
R | 1.5 | mm | (minimum) |
Basic load rating | |||
CR | 48200 | N | Dynamic load |
---|---|---|---|
C0 | 46900 | N | static load |
limit speed | |||
NG | 6800 | 1/min | grease lubrication |
---|---|---|---|
NO | 9000 | 1/min | oil lubrication |
We manufacture and supply the following products
30301 | 30302 | 30303 |
30304 | 30305 | 30306 |
30307 | 30308 | 30309 |
We also produce the following products at low cost
055ZC | 33207ZC | 30205ZC | 2209ZC | 6208ZC | 309ZC | 2207ZC | 6014ZC | 306ZC |
060ZC | 345233ZC | 30209ZC | 2211ZC | 6213ZC | 309ZC | 2208ZC | 6206ZC | 308ZC |
065ZC | 354520ZC | 3020ZC | 2212ZC | 6905ZC | 32012ZC | 208ZC | 5904ZC | 30314ZC |
070ZC | 502515ZC | 30211ZC | 2304ZC | 6906ZC | 32013ZC | 209ZC | 5908ZC | 304020ZC |
205ZC | 503303ZC | 30212ZC | 2305ZC | 6922ZC | 32207ZC | GE35ZC | 32212ZC | 2820ZC |
206ZC | 503806ZC | 30213ZC | 243320ZC | 6932ZC | 32211ZC | 6008ZC | 305ZC | 2206ZC |
207ZC | 503807ZC | 30302ZC | A8V0140 | HPV55 | SPK10/10 | PSVD2-55 52 | AP2D25 | A8V0200 |
208ZC | 553830ZC | 30305ZC | A8V0160 | HPV90 | HPV050 | A8V107 | AP2D36 | K3V140DT |
FOR MORE DETAIL PLS CONTACT US
We can supply you all kinds of excavator spare parts as following:
Hydraulic Parts:
Hydraulic pump, Travel motor, Swing motor, Travel gearbox, Swing gearbox, Main control valve, Hydraulic cylinder assy, Gear pump, Pump regulator,etc.
Undercarriage Parts:
Track link and shoe assy, Track roller, Carrier roller, Idler, Sprocket, Track link guide, Track Adjuster assy, etc.
Excavator Attachments:
Bucket ,mud bucket,earth bucket, heavy duty rock bucket , skeleton bucket,hydraulic breaker, hydraulic quick coupler,ripper,etc.
Cabin Parts:
Excavator cabin, Cabin door, Side door panel, Cabin seat, Cabin glass, Engine cover, Tool box, Door lock, etc.
Electric Parts:
Controller, Monitor, Panel, Throttle motor, Solenoid valve, Wire harness, etc.
Engine Parts:
Cylinder block, Cylinder head, Crankshaft, Engine assy, Injector, Fuel injection pump, Oil pump, Feed pump, Oil cooler, Filter, Turbocharger, Starter motor, Alternator, Water pump, Fan blade, Liner kits, Bearings, Valves, Gasket kit, etc.
Other Parts:
Seal kit, Floating seal, Joystick, Foot pedal valve, O-ring box, Coupling, etc.
![]() |
