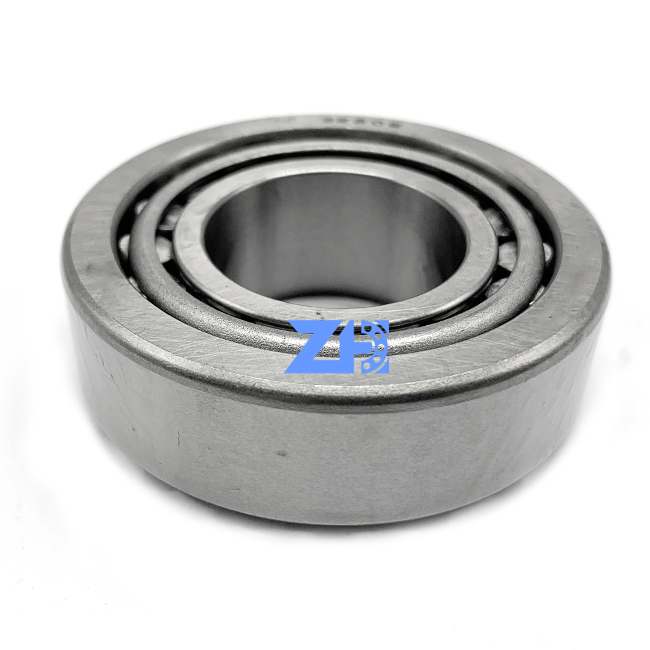

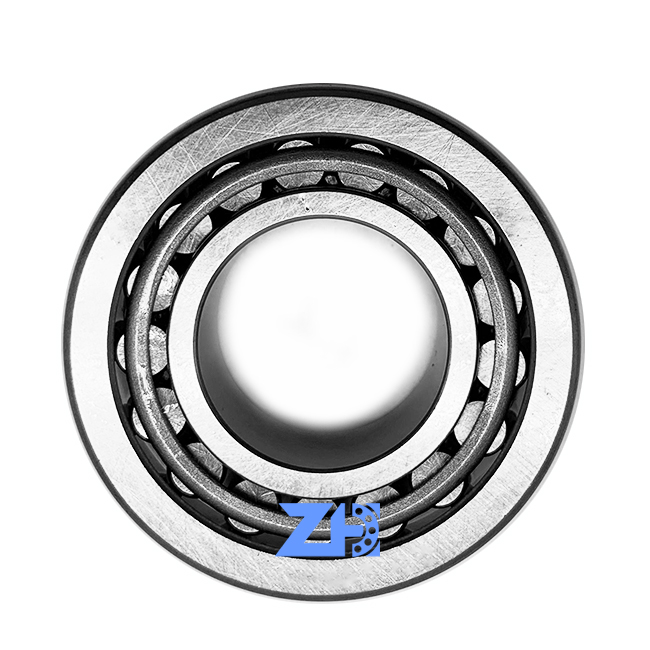

| PRODUCT DEFINITION |
| Brand | ZH |
| d - Internal diameter | 30 mm |
| D - External diameter | 62 mm |
| B - Bearing/Inner ring width | 16 mm |
| C - Outer ring width | 17 mm |
| T - Total width | 21,25 mm |
| d1 - External diameter inner ring | 45,5 mm |
| a - Charge load application point | 15,65 mm |
| rs - Min fillet radius | 1 mm |
| r1s - Min fillet radius | 1 mm |
| Mass | 0,21kg |
| ISO 355 reference | T3DC030 |
| PRODUCT PERFORMANCE |
| C - Dynamic load | 54,3 kN |
| A2 - Rating life coefficient | 1 |
| C0 - Static load | 63,7 kN |
| Cu - Fatigue limit load | 7,8 kN |
| e - Coefficient | 0.37 |
| Y0 - Static axial load coefficient | 0.88 |
| Y2 - Upper axial load coefficient | 1.6 |
| Nref - Reference thermal speed | 6700 tr/min |
| Nlim - Mechanical Limit Speed | 12000 tr/min |
| Tmin - Min operating temperature | -40 °C |
| Tmax - Max operating temperature | 120 °C |
| BEARING FREQUENCIES |
| BPFO - Characteristic outer ring frequency (60 rpm) | 7,119 Hz |
| BPFI - Characteristic inner ring frequency (60 rpm) | 9,881 Hz |
| FTF - Characteristic cage frequency (60 rpm) | 0,419 Hz |
| BSF - Characteristic rolling element frequency (60 rpm) | 5,814 Hz |
WE CAN OFFER THESE 3220- MODEL
| 32201 | 32202 | 32203 |
| 32204 | 32205 | 32206 |
| 32207 | 32208 | 32209 |
Additive standard
| 2RS | Z | W | X2B |
| ZZ | Q | M | X |
| ZN | JQ | D | JR |
WE CAN OFFER THESE MODEL HYDRAILIC PUMP BEARINGS :
| HPV35 | HPV145 | K3V63DT | HPV95 | AP12 | A8V107 | K3V180DT | HPV091DW | A10VS063 |
| HPV75 | HPV116/145 | K3V63BDT | HPV95N | SBS140 | A8V115 | K5V140DTP | HPV091EW | .... |
| HPV55 | VRD63 | K3VL80DTP | HPV160 | SBS120 | A8V0107 | K5V160DTP | HPV091DS | |
| NVK45 | PVK-2B-505 | K5V80DTP | HPV132 | SBS80 | A8V0140 | K5V160DP | HPV091ES | |
| A8V055 | PVB92 | K3V112DT | HPV140 | AP2D25 | A8V0160 | K5V200DTH | HPV091/102 | |
| A8V86 | PSVD2-27 | K3V112DP | HPV165 | AP2D36 | A8V0200 | K5V200DPH | HPV0102 | |
| A8V0107 | K5V80 | K3V112BDP | HPK055K | A10VD17 | A10VO28 | NV111 | HPV0118 | |
| K3SP36C | A10VS071 | K3V140DT | HPV050 | A10VD43 | PSVD2-55 52 | K7V63 | HPV116 | |
FOR MORE DETAIL PLS CONTACT US
