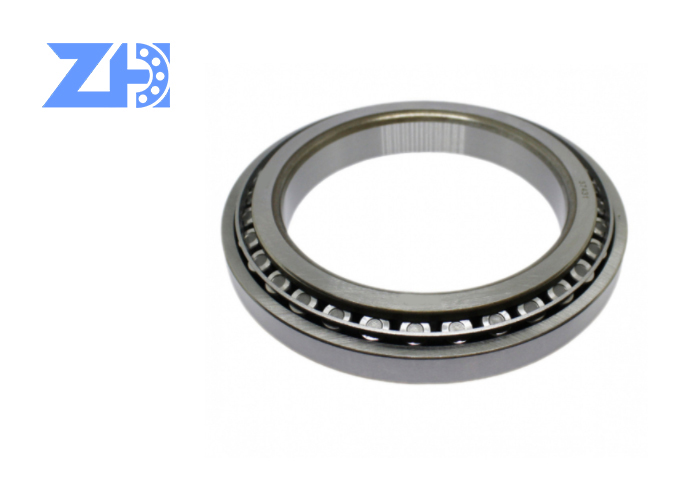

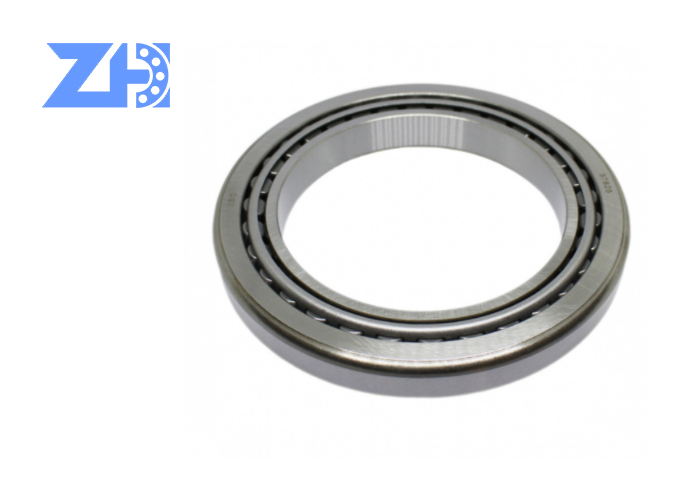

Inch Tapered Roller Bearing 37431/37625 37431A 37625 Size 109.538x158.75x23.02mm

Name: Inch Tapered Roller Bearing 3743137625 37431A 37625 Size 109538x15875x2302mm
Brand: QIEAL ZH
Price: 1 USD

Inch Tapered Roller Bearing 37431/37625 37431A 37625 Size 109.538x158.75x23.02mm Manufactures

Brand Name : QIEAL ZH

Model Number : 37431 37625

Place of Origin : CHINA

MOQ : 1 pcs

Price : negotiable

Payment Terms : T/T, Western Union,

Supply Ability : 1000

Delivery Time : 2-8 work days

Packaging Details : Commins packing , neutral packing ,standard exporting packing or as required

Certifiexcavatorion : ISO-9001

Weight : 1,30 KGS

Inner diameter [d] : 109,538 mm

Outer diameter [D] : 158,75 mm

Inner ring width [B] : 21,438 mm

Outer ring width [C] : 15,875 mm

Total width [T] : 23,02 mm

Precision Rating : PO, P6, P5, P4, P2

Vibration : V1 V2 V3 V4

Seals Type : Open

Type : Roller

Contact Now

Inch Tapered Roller Bearing 37431/37625 37431A 37625 Size 109.538x158.75x23.02mm

Since the price and shipping cost will fluctuate in real time, please contact customer service to confirm before placing the
  order. Custom LOGO, custom packaging, custom patterns, please contact customer service to confirm the price and delivery date before placing an order.

Tapered roller bearings mainly bear radial and axial combined loads. The bearing capacity of the bearing depends on the raceway angle of the outer ring. The greater the carrying capacity. This type of bearing is a split type bearing, which is divided into single row, double row and four row tapered roller bearings according to the number of rows of rolling elements in the bearing. The clearance of the single-row tapered roller bearing needs to be adjusted by the user during installation; the double-row and four-row tapered roller bearing clearance has been given according to the user's requirements at the time of shipment from the factory, and no user adjustment is required. Tapered roller bearings are widely used in automobiles, rolling mills, mining, metallurgy, plastic machinery and other industries.

Product Name	37431/37625 Tapered Roller Bearing
Size	****mm
Material	Chrome Steel
Precision	PO, P6, P5, P4, P2
Stock	Big stock, quick delivery
Number of Row	Single row, double row, four row

Inch Tapered Roller Bearing 37431/37625 37431A 37625 Size 109.538x158.75x23.02mm

Product Features

Single cone (inner ring) for connecting to compatible cups (outer rings, sold separately) to form a complete single tapered roller bearing
Supports both radial and axial loads between a rotating and non-rotating member
Operating temperatures range from -54 to 120 degrees C (-65 to 250 degrees F)
Stamped steel cage evenly spaces rollers for reduced friction, vibration, and noise
Open configuration for lubriexcavatorion applied in place

The tapered roller bearing is mainly used to carry the radially and axially combined load,mostly the radial load.The inner components and the out ring of the bearing are detachable,facilitating assembly and disassembly.The axial loading capacity of bearing depands on the contact angle,the larger which is,the larger the axial loading capacity will be.Tapered roller bearing is the largest amount of single row circular cone roller bearings. In the car wheel hub, in recent years is also played by the small size of the double row circular cone roller bearings. Four row circular cone roller bearings used in large cold, hot rolling mill and other heavy machine. Tapered roller bearing feature:Tapered roller bearing can bear large radial load and axial load.Because of cone roller bearing can only transfer unilateral axial load, therefore, in order to transfer the opposite direction of the axial load will need another symmetric installed circular cone roller bearings.Tapered roller bearing main appliexcavatorion:

Product Description

This Bearings 37431/37625 single cone with a stamped steel cage matches with a single cup (outer ring, sold separately) to assemble into a complete single tapered roller bearing, suitable for appliexcavatorions that support both radial and axial loads. The cone assembly does not contract or expand under operating temperatures ranging from -54 to 120 degrees C (-65 to 250 degrees F). Generally mounted in opposing pairs on a shaft to evenly distribute loads, this single cone is made of own high-alloy steel for durability, heat tolerance, and resistance to deformity under heavy loads. The stamped steel cage prevents rollers from coming into contact with each other during use, reducing friction, vibration, and noise. As part of a separable tapered roller bearing unit, this single cone assembly has an open design that allows for lubriexcavatorion and accurate adjustments. This single tapered roller bearing is for use in high-load, moderate-speed appliexcavatorions that include automotive axle systems and conveyor systems in heavy duty industries such as mining, construction and agriculture, among many other

appliexcavatorions.

Product packaging

Inch Tapered Roller Bearing 37431/37625 37431A 37625 Size 109.538x158.75x23.02mm
