CHROME STEEL Taper Roller Bearing NJ310 NJ310ET2XU NJ310ET2XUP2RS 50*110*27mm

  • 1
  • 2
  • 3

Model Number : NJ310ET2XU

Place of Origin : CHINA

MOQ : 1 PC

Price : factory price

Payment Terms : T/T, Western Union,,, L/C, Western Union

Supply Ability : 30000 Set/Sets per Month

Delivery Time : in stock

Packaging Details : handok ,jic ,neutral packing ,standard exporting packing or as required

Brand Name : ZH

Certification : IS09001

Product name : CHROME STEELT APPER ROLLER BEARING

Model : NJ310ET2XU

Quality : High-Quality

Material : CHROME STEEL

MOQ : 1

Supply : 30000 Set/Sets per Month

Packaging : Your requirement

Size : 50*110*27mm

Quality ANK : P0、P2、P4、p5、

Contact Now

NJ310ET2XUP2X NJ310ET2XUP2W NJ310ET2XUP2RS J310ET2XU NJ310ET2CA NJ310ET2K P0 P1 P5 P6 P3 Quality LEVEL CHROME STEEL Taper Roller Bearing


Product introduction
NJ310ET2XU bearings can be used in products ranging from cars, motorcycles, and bicycles to heavy machinery like lift cranes and even ship propellers.
(
Factory price, let you happy shopping)

As the industry leader in cylindrical bearings manufacturing and supplying, we have a variety of different models to fulfill the needs of our customers.

Our Cylindrical Bearings are available in a wide range of sizes and materials to accommodate the specific needs of all those who come to us looking for a reliable cylindrical

bearing supplier. We also can customize the specific cylindrical bearing that you need so that you get precisely what you are looking for.


Cylindrical Bearings are available in two main types: deep groove ball bearings and angular contact ball bearings. The deep groove ball bearing is designed for use in applications that require light loads and higher speeds,

while angular contact ball bearings are built to carry heavier loads at slower speeds. Depending on your exact needs, we can help you select the best type of cylindrical bearing for your application.



CHROME STEEL Taper Roller Bearing NJ310 NJ310ET2XU NJ310ET2XUP2RS 50*110*27mm
CHROME STEEL Taper Roller Bearing NJ310 NJ310ET2XU NJ310ET2XUP2RS 50*110*27mm

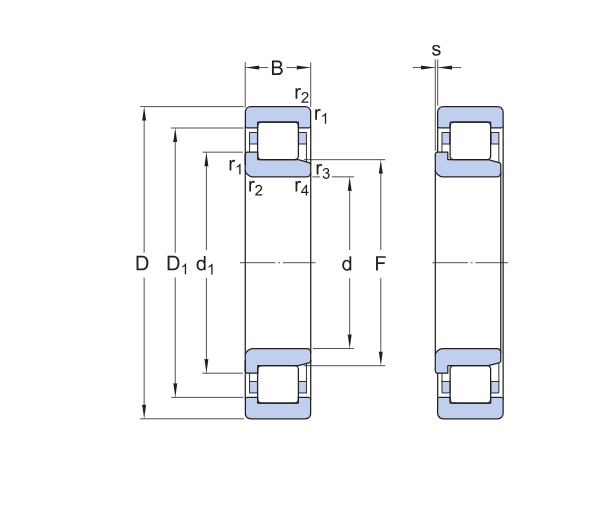

Dimensions

d
50 mm
Bore diameter
D
110 mm
Outside diameter
B
27 mm
Width
d1
71.2 mm
Shoulder diameter of inner ring
D1
91.4 mm
Shoulder diameter of outer ring
F
65 mm
Raceway diameter of inner ring
r1,2
min.2 mm
Chamfer dimension
r3,4
min.2 mm
Chamfer dimension
s
max.1.9 mm
Permissible axial displacement

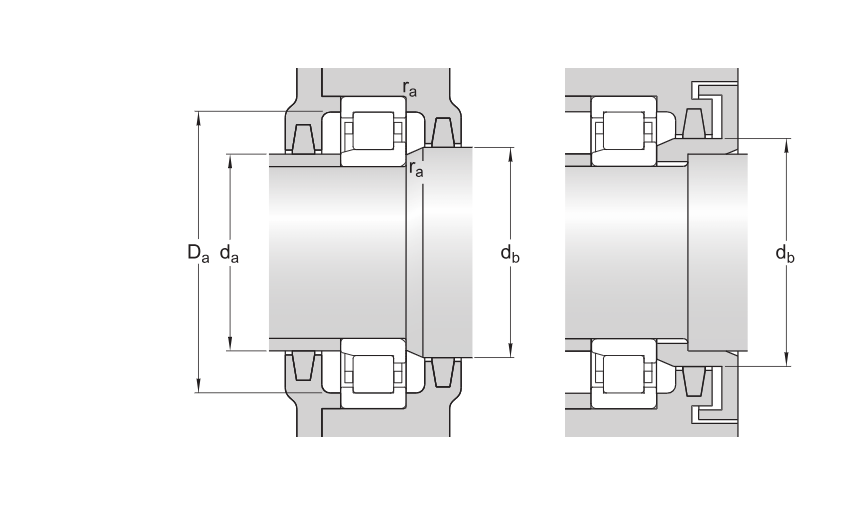

Abutment dimensions

da
min.60 mm
Diameter of spacer sleeve
da
max.63 mm
Diameter of spacer sleeve
db
min.73 mm
Diameter of shaft abutment
Da
max.99.6 mm
Diameter of housing abutment
ra
max.2 mm
Radius of fillet

Calculation data

Basic dynamic load rating C
127 kN
Basic static load rating C0
112 kN
Fatigue load limit Pu
15 kN
Reference speed
6 700 r/min
Limiting speed
8 000 r/min
Minimum load factor kr
0.15
Limiting value e
0.2
Calculation factor Y
0.6
