High Quality TAPPER ROLLER BEARING 40*90*23mm NJ308 NJ308ET2XU NJ308ET2XUP2J

  • 1
  • 2
  • 3

Model Number : SK75-8

Place of Origin : CHINA

MOQ : 1 PC

Price : factory price

Payment Terms : T/T, Western Union,,, L/C, Western Union

Supply Ability : 30000 Set/Sets per Month

Delivery Time : in stock

Packaging Details : handok ,jic ,neutral packing ,standard exporting packing or as required

Brand Name : ZH

Certification : IS09001

Product name : TAPPER ROLLER BEARING

Model : NJ308ET2XU

Quality : High-Quality

Material : CHROME STEEL

MOQ : 1

Supply : 30000 Set/Sets per Month

SIze : 40*90*23mm

Contact Now

NJ308 NJ308ET2XU NJ308ET2XUP 2RNJ308ET2XUP2J NJ308ET2XUP2K NJ308ET2XUP2L NJ308ET2XUP2A NJ308ET2A NJ308ET2XUP2W
P0 P1 P5 P6 P3 Quality LEVEL CHROME STEEL Taper Roller Bearing

Product introduction

Cylindrical roller bearings are available in various designs, such as with different types of cages, inner and outer ring configurations, and clearance levels


The cylindrical rollers are also made of steel and are arranged parallel to the axis of rotation. The cage, usually made of brass or steel, holds the rollers evenly spaced apart and prevents them from coming into contact with each other.


Cylindrical roller bearings are commonly used in various machinery and equipment, including automotive applications, industrial machinery, and power transmission systems.

They are known for their high load-carrying capacity, relatively high stiffness, and ability to accommodate axial loads in addition to radial loads.

High Quality TAPPER ROLLER BEARING 40*90*23mm NJ308 NJ308ET2XU NJ308ET2XUP2J
High Quality TAPPER ROLLER BEARING 40*90*23mm NJ308 NJ308ET2XU NJ308ET2XUP2J

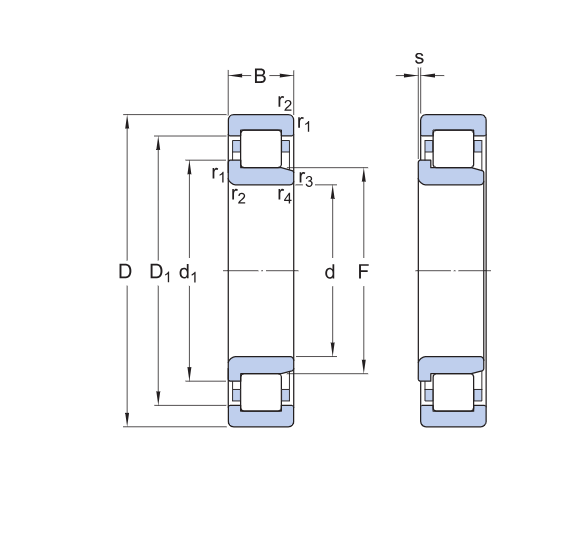

Dimensions

d
40 mm
 Bore diameter
D
90 mm
 Outside diameter
B
23 mm
 Width
d1
≈57.5 mm
 Shoulder diameter of inner ring
D1
≈75.18 mm
 Shoulder diameter of outer ring
F
52 mm
 Raceway diameter of inner ring
r1,2
min.1.5 mm
 Chamfer dimension
r3,4
min.1.5 mm
 Chamfer dimension
s
max.1.4 mm
 Permissible axial displacement

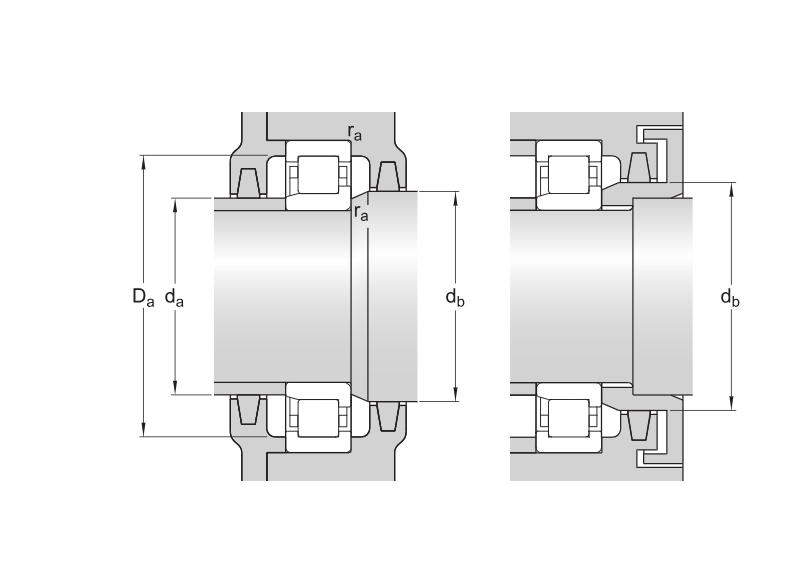

Abutment dimensions

da
min.48 mm
 Diameter of spacer sleeve
da
max.50 mm
 Diameter of spacer sleeve
db
min.60 mm
 Diameter of shaft abutment
Da
max.81.8 mm
 Diameter of housing abutment
ra
max.1.5 mm
 Radius of fillet

|

Calculation data

Basic dynamic load rating C
93 kN
Basic static load rating C0
78 kN
Fatigue load limit Pu
10.2 kN
Reference speed
8 000 r/min
Limiting speed
9 500 r/min
Minimum load factor kr
0.15
Limiting value e
0.2
Calculation factor Y
0.6

  • Refer to products with high sales

    30302ZC 32012ZC 6905ZC 30209ZC 306ZC 6206ZC
    2304ZC 32013ZC 304020ZC 3020ZC 6932ZC 6208ZC
    345233ZC 208ZC 32207ZC 2305ZC 5904ZC 6213ZC
    553830ZC 209ZC 32211ZC 243320ZC 2212ZC 065ZC
    5908ZC 2206ZC 32212ZC 2820ZC 2209ZC 070ZC
    206ZC 055ZC 354520ZC 30205ZC 6014ZC
    305ZC 30212ZC 30211ZC 503806ZC 060ZC
    309ZC 30213ZC 6008ZC 30314ZC 502515ZC
    503807ZC 2207ZC 207ZC 6906ZC 503303ZC

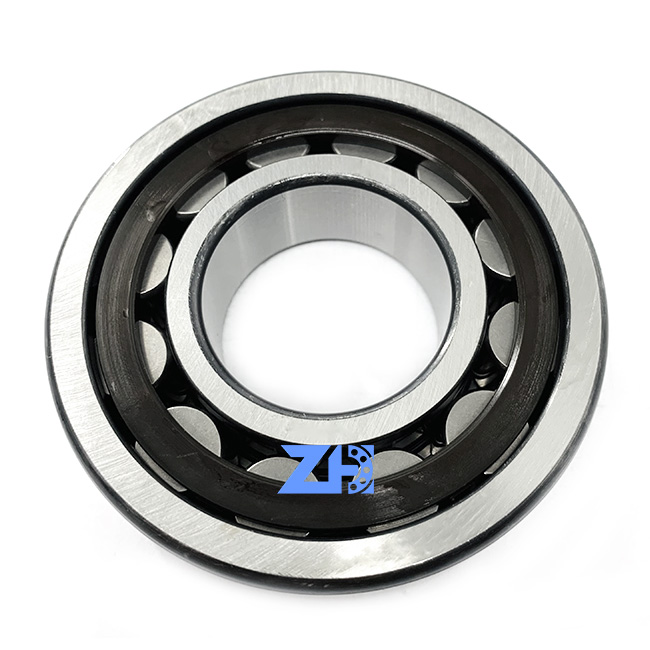

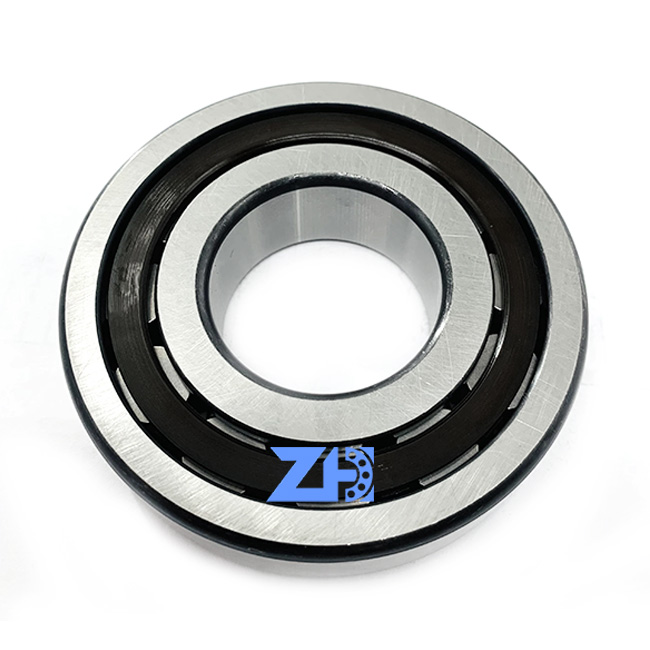

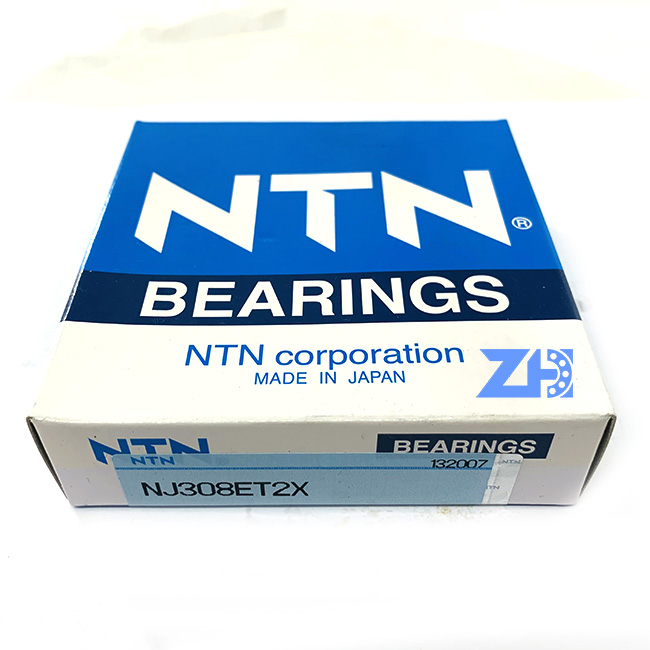

    Picture Show
    High Quality TAPPER ROLLER BEARING 40*90*23mm NJ308 NJ308ET2XU NJ308ET2XUP2JHigh Quality TAPPER ROLLER BEARING 40*90*23mm NJ308 NJ308ET2XU NJ308ET2XUP2JHigh Quality TAPPER ROLLER BEARING 40*90*23mm NJ308 NJ308ET2XU NJ308ET2XUP2J
    High Quality TAPPER ROLLER BEARING 40*90*23mm NJ308 NJ308ET2XU NJ308ET2XUP2J

    High Quality TAPPER ROLLER BEARING 40*90*23mm NJ308 NJ308ET2XU NJ308ET2XUP2J

    High Quality TAPPER ROLLER BEARING 40*90*23mm NJ308 NJ308ET2XU NJ308ET2XUP2J
    FAQ

    Q1: I want to buy your products, how can I pay?
    A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.


    Q2: How can you guarantee the quality?
    A: If you meet with quality problem, we promise to replace goods or return your funds.


    Q3: If we don’t find what we want on your website, what should we do?
    A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.


    Q4: Can we buy 1 pc of each item for quality testing?
    A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.


    Why choose us?
    1. Let’s talk—we have NO barrier in language
    2. Request for more item information---there are nearly 2000 products for your option!
    3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready products!
