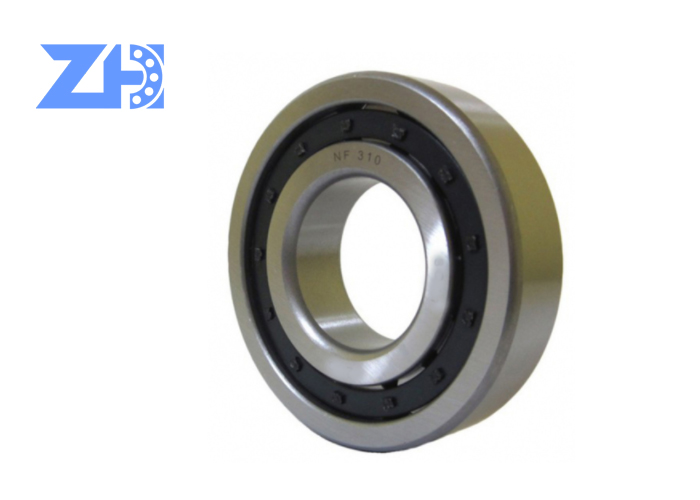

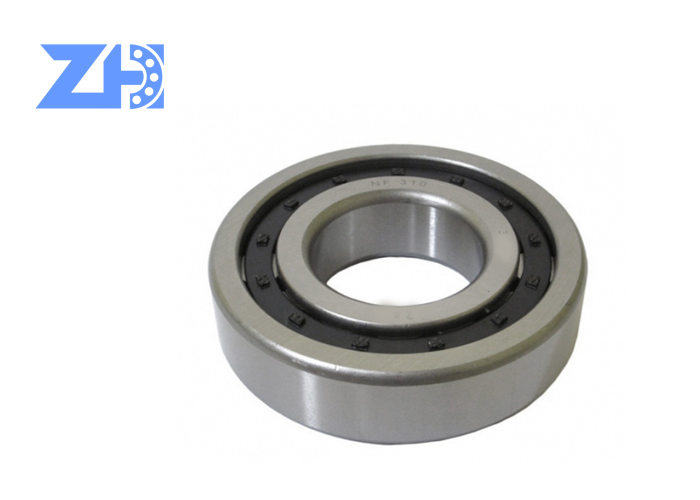

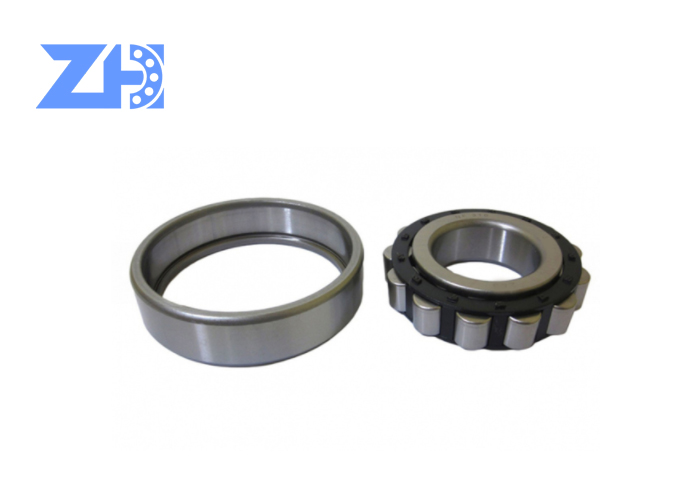

NF310E cylindrical roller bearing NF310EM spindle beraing 50x110x27 mm Cylindrical roller bearing are of high load capacity and can operate at high speeds because they use rollers as their rollingelements. They can therefore be used in appliexcavatorions involving heavy radial and impact loading.
The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitablefor appliexcavatorions that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.
structure:NU,N,NJ,NF,NUP,NH,NCL...V,NB,NU...V,NNU,NNCF,NNCL,NNCS,FC,FCD,FCDP...
10 Physical Characteristics:
1) Cylindrical roller bearing can be separated by single row,double rows and four rows.
2) This kind of bearing can be submitted to high radial load and some axial load.
3) The rolling element of cylindrical roller bearing is cylinder,the two ends of the external lines have the corrective slope
which can eliminate the contact stress.
4) NN and NNU design cylindrical roller bearing have high rigid and apply to machines such as millings.
Cylindrical Roller Bearing SIZE AS FOLLOWING:
| Bearing No. | Boundary dimensions (mm) | Basic load ratings (KN) | Weight KG |
| d | D | B | Cr | C0r |
| NU212EM | 60 | 110 | 22 | 97500 | 107000 | 0.93 |
| NU2212EM | 60 | 110 | 28 | 131000 | 157000 | 1.19 |
| NU312EM | 60 | 130 | 31 | 150000 | 157000 | 2.06 |
| NU2312EM | 60 | 130 | 46 | 222000 | 262000 | 3.08 |
| NU213EM | 65 | 120 | 23 | 108000 | 119000 | 1.17 |
| NU2213EM | 65 | 120 | 31 | 149000 | 181000 | 1.58 |
| NU313EM | 65 | 140 | 33 | 181000 | 191000 | 2.56 |
| NU2313EM | 65 | 140 | 48 | 233000 | 265000 | 3.67 |
| NU214EM | 70 | 125 | 24 | 119000 | 137000 | 1.29 |
| NU2214EM | 70 | 125 | 31 | 156000 | 194000 | 1.67 |
| NU314EM | 70 | 150 | 35 | 205000 | 222000 | 3.09 |
| NU2314EM | 70 | 150 | 51 | 274000 | 325000 | 4.51 |
| NU215EM | 75 | 130 | 25 | 130000 | 156000 | 1.44 |
| NU2215EM | 75 | 130 | 31 | 162000 | 207000 | 1.76 |
| NU315EM | 75 | 160 | 37 | 240000 | 263000 | 3.73 |
| NU2315EM | 75 | 160 | 55 | 330000 | 395000 | 5.57 |
| NU216EM | 80 | 140 | 26 | 139000 | 167000 | 1.7 |
| NU2216EM | 80 | 140 | 33 | 186000 | 243000 | 2.18 |
| NU316EM | 80 | 170 | 39 | 256000 | 282000 | 4.45 |
| NU2316EM | 80 | 170 | 58 | 355000 | 430000 | 6.57 |
| NU217EM | 85 | 150 | 28 | 167000 | 199000 | 2.11 |
| NU2217EM | 85 | 150 | 36 | 217000 | 279000 | 2.75 |
| NU317EM | 85 | 180 | 41 | 291000 | 330000 | 5.26 |
| NU2317EM | 85 | 180 | 60 | 395000 | 485000 | 7.69 |
| NU218EM | 90 | 160 | 30 | 182000 | 217000 | 2.6 |
| NU2218EM | 90 | 160 | 40 | 242000 | 315000 | 3.5 |
| NU318EM | 90 | 190 | 43 | 315000 | 355000 | 6.1 |
| NU2318EM | 90 | 190 | 64 | 435000 | 535000 | 9.08 |
| NU219EM | 95 | 170 | 32 | 220000 | 265000 | 3.17 |
| NU2219EM | 95 | 170 | 43 | 286000 | 370000 | 4.29 |
| NU319EM | 95 | 200 | 45 | 335000 | 385000 | 7.13 |
| NU2319EM | 95 | 200 | 67 | 460000 | 585000 | 10.6 |
| NU220EM | 100 | 180 | 34 | 249000 | 305000 | 3.81 |
| NU2220EM | 100 | 180 | 46 | 335000 | 445000 | 5.23 |
| NU320EM | 100 | 215 | 47 | 380000 | 425000 | 8.63 |
| NU2320EM | 100 | 215 | 73 | 570000 | 715000 | 13.4 |
| NU221EM | 105 | 190 | 36 | 262000 | 310000 | 4.58 |
| NU2221EM | 105 | 190 | 50 | 350000 | 455000 | 6.32 |
| NU321EM | 105 | 225 | 49 | 425000 | 480000 | 9.84 |
| NU2321EM | 105 | 225 | 77 | 635000 | 805000 | 15.5 |
| NU222EM | 110 | 200 | 38 | 293000 | 365000 | 5.37 |
| NU2222EM | 110 | 200 | 53 | 385000 | 515000 | 7.65 |
| NU322EM | 110 | 240 | 50 | 450000 | 525000 | 11.8 |
| NU2322EM | 110 | 240 | 80 | 675000 | 880000 | 18.8 |
Packaging & delivery
- Packaging Details
- single box + carton
- Port
- QINGDAO SHANGHAI GUANGZHOU
- Lead time:
-
| Quantity(pieces) | 1 - 100 | >100 |
| Lead time (days) | 7 | To be negotiated |
Packing :
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us .
