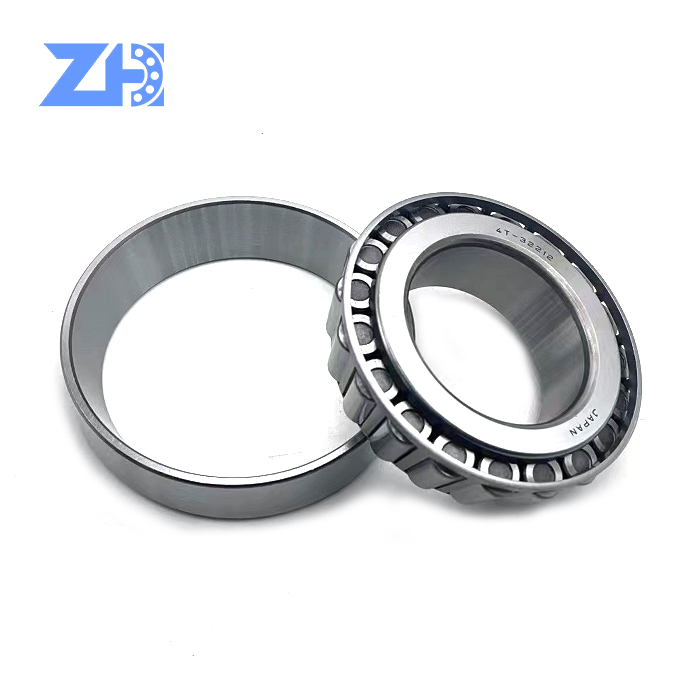

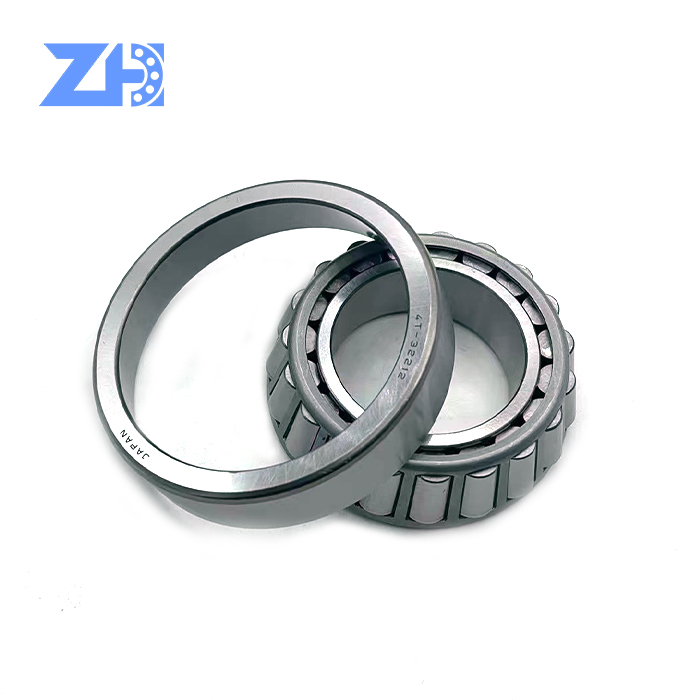

Single Line V3 C4 Taper Roller Bearing 32212 Size 60*110*28mm

ZhongHong bearing Co., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Single Line V3 C4 Taper Roller Bearing 32212 Size 60*110*28mm

  • 1
  • 2
  • 3

Brand Name : QIEAL ZH

Model Number : 32212

Certifiexcavatorion : ISO-9001

Place of Origin : CHINA

MOQ : 1pc

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2800 per day

Delivery Time : 2-7 days

Packaging Details : According to customer requirements

Accuracy Rating : P0,P6, P5, or as requested

Row number : single line

Delivery : By Sea, Air or Express

Sample order : To accept

Model : Bearings 32212

Vibration : V1, V2, V3, V4

Clearance : C0 C2 C3 C4 C5

Size : 60x110x28mm

Contact Now

Excavator Bearing 32212 Tapered Roller Bearing 32212 Size 60*110*28mm


The 32212 tapered roller bearings have the logarithmic contact profile which provides a better distribution of stresses on the roller/race contacts. The special design of sliding surfaces of guide flange and large roller ends greatly promote lubriexcavatoring film formation at the end of roller/flange contacts. Resulting benefits include increased operational reliability and reduced sensitivity to misalignment.

Specifiexcavatorions

Series

32212 m

Cone Part Number

XA32212M

Cup Part Number

Y32212M

Design Units

METRIC

Weight Bearing

1,100 kg£2.50

cage type

Stamped steel

dimensions

D-Bore

60,000mm2.3622 in

Cup D-Outer Diameter

110,000mm4.3307 in

B-Cone Width

28,000mm1.1024 in

C-Cup Width

24,000mm0.9449 in

T-Bearing Width

29,750mm1.1713 in

Pillar and Fillet of Dimensions

R-Cone Backface "To Clean" Radius 1 2,030mm0.080 in
R-Cup Hidden Face "To Clean" Radius 2 1.52mm0.06 in

Diameter of the Cone Frontface Backing

67.06mm2.64 in

Db-Cone Diameter Protective Coating Backface

71.12mm2.80 in

Frontface Cup Support Diameter

103.90mm4.11 in

Db-Cup Diameter Protective Coating Backface

98.04mm3.86 in

Ab-Cage-Cone Frontface Clearance

4.1mm0.16 in

Aa-Cage-Cone Backface Clearance

1.8mm0.07 in
One-Center Effective Loexcavatorion 3 -5.10mm-0.20 in

base load capacity

C90-Dynamic Radial Rating (90 million revolutions) 4 35600 N8010 lbf
C1-Dynamic Radial Rating (1 million revolutions) 5 137000 N30900 lbf

C0-Static Radial Classifiexcavatorion

160000 N35900 lbf
C A90 -Dynamic Impulse Rating (90 million revolutions) 6 24700 N5550 lbf

Factors

K-Factor 7 1.44
E-Factor of ISO 8 0.40
Y-Factor of ISO 9 1.48

G1-Heat Generation Factor (-Roller Raceway)

54.8

G2-Heat Generation Factor (Rib-Roll End)

19.5

Geometry Cg-Factor

0.0886

Single Line V3 C4 Taper Roller Bearing 32212 Size 60*110*28mmSingle Line V3 C4 Taper Roller Bearing 32212 Size 60*110*28mmSingle Line V3 C4 Taper Roller Bearing 32212 Size 60*110*28mm

Single Line V3 C4 Taper Roller Bearing 32212 Size 60*110*28mm

different type
Single Line V3 C4 Taper Roller Bearing 32212 Size 60*110*28mm
Single Line V3 C4 Taper Roller Bearing 32212 Size 60*110*28mm
Single Line V3 C4 Taper Roller Bearing 32212 Size 60*110*28mm

Deep groove ball bearing

tapered roller bearing

needle roller bearing

Single Line V3 C4 Taper Roller Bearing 32212 Size 60*110*28mm
Single Line V3 C4 Taper Roller Bearing 32212 Size 60*110*28mm
Single Line V3 C4 Taper Roller Bearing 32212 Size 60*110*28mm

linear bearing

One-way Clutch Bearing

slewing bearing
Single Line V3 C4 Taper Roller Bearing 32212 Size 60*110*28mm
Single Line V3 C4 Taper Roller Bearing 32212 Size 60*110*28mm
Single Line V3 C4 Taper Roller Bearing 32212 Size 60*110*28mm

Rest Block Bearing

Wheel Hub Bearing

Spherical Plain Bearing

Packaging & Shipping

1. pipe package + outer carton + pallets
2. single carton + outer carton + pallets
3. tube + orient package, + outer carton, carton + pallets
4. As your requirement.

>> Payment terms

A: 30% T/T in advance. 70% before shipment or against copy of B/L

B: Western Union

C: 100% L/C at sight

>> Delievery times

7~10 days; If in stock, 1 working days.

>> Transportation

A: Express: DHL, TNT, FedEx and so on.

B: Ocean shipping: To Every port

C: Air transport.

Single Line V3 C4 Taper Roller Bearing 32212 Size 60*110*28mm

FAQ

Q: Are you trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to the quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free charge but don't pay the freight cost.

Q: What are your payment terms?

A: Payment <= 1000usd, 100% in advance. Payment >=1000usd, 30% T/T in advance, balance before shippment.
